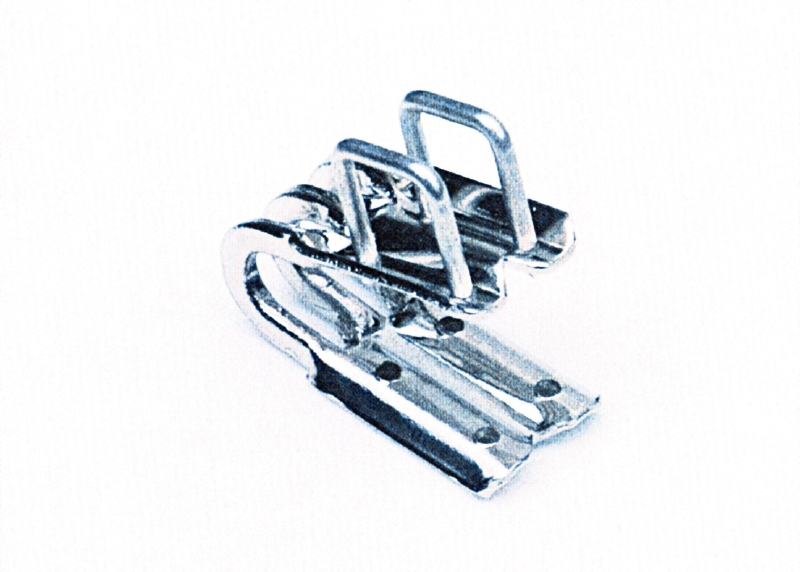

Agricultural - Titan 05+

Product Features

  • Fasteners and staples in stainless steel. Particularly suitable for use in extreme crop conditions (silage or high density hay baling.
  • Flexible stainless steel polymer covered cable or rigid stainless connecting pin. Replacement connecting pins available.Replaced every 750 -1000 bales.
  • Tool part # 109221 / Fastener Part # 109105

Packaging

  • Box of 12 strips and 6 connecting pins to make 6 complete joints.

Installation Requirments

  • This lightweight and dependable lacing tool is ideal for fast repairs. It allows the splicing of the 7” (180mm) wide belt in an easy and quick manual process. Open ended, it allows continuous lacing for wider belts.
  • Hammer Installed
Belt Thickness Range Max Working Tension of Belt Pin Diameter Min Pulley Diameter
inch mm PIW N/mm inch mm inch mm
3/16 - 9/32 5 - 7 360 65 1/8 3 3 3/16 80
